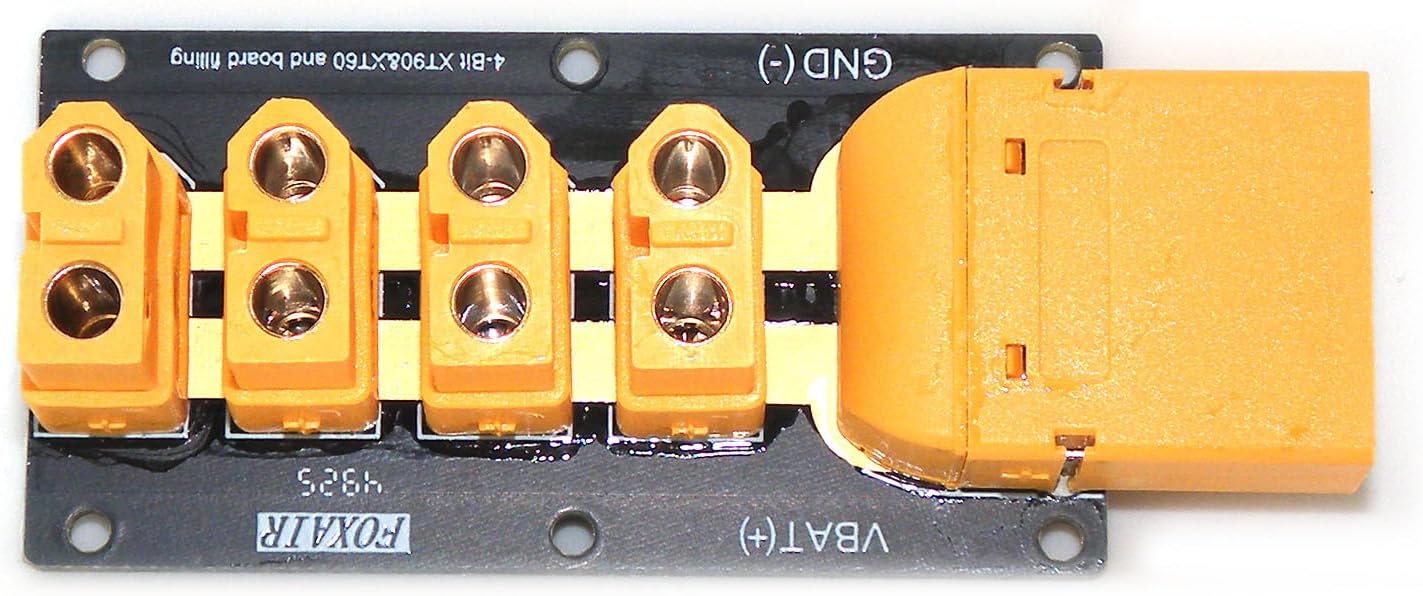

XT90 to XT60 4-Channel Power Distribution Board, 1 XT90 Male to 4 XT60 Female Splitter, High Current PDB 200A for RC Car Boat DIY

This high-current power distribution board converts one XT90 input into four parallel XT60 outputs, allowing you to power multiple devices at the same time with cleaner wiring. Built with full solder fill on the backside for improved conductivity and higher current handling, it’s a practical choice for RC DIY builds such as cars, boats, and other high-load setups. Basic Parameters:Input connector: XT90 to XT60Output connector / Channels: 1 × XT90 male to 4 × XT60 female (4 parallel outputs)Max overcurrent: 200ABoard size: 58 × 30 mmThickness: 1.8 mmWeight: 33 gParallel interfaces: 4Mounting holes: M2Package includes:1 × 4-Channel Power Distribution BoardInstallation note: Please add insulation protection on the back of the board during installation to reduce short-circuit risk.

• XT90 to 4×XT60 Power Splitter — 1 XT90 male input to 4 XT60 female parallel outputs for multi-device power.
• High Current Design (Up to 200A Overcurrent) — built for high-load RC and DIY power distribution applications.

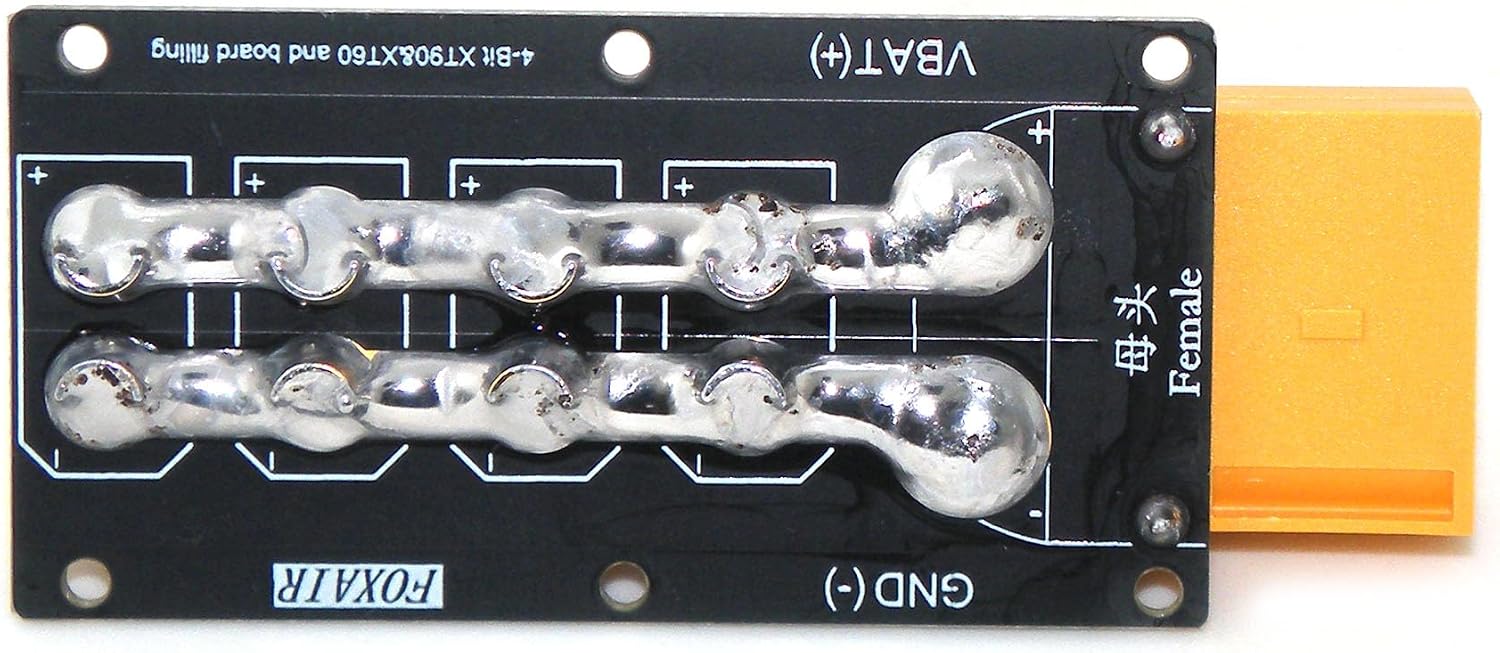

• Full Solder Fill Backside — reinforced soldering improves conductivity and supports higher current handling.
• Compact & Mountable — 58×30mm board with M2 mounting holes for easy installation and clean wiring.
• Install Safely — insulate the backside during installation to help prevent shorts and ensure stable power delivery.
