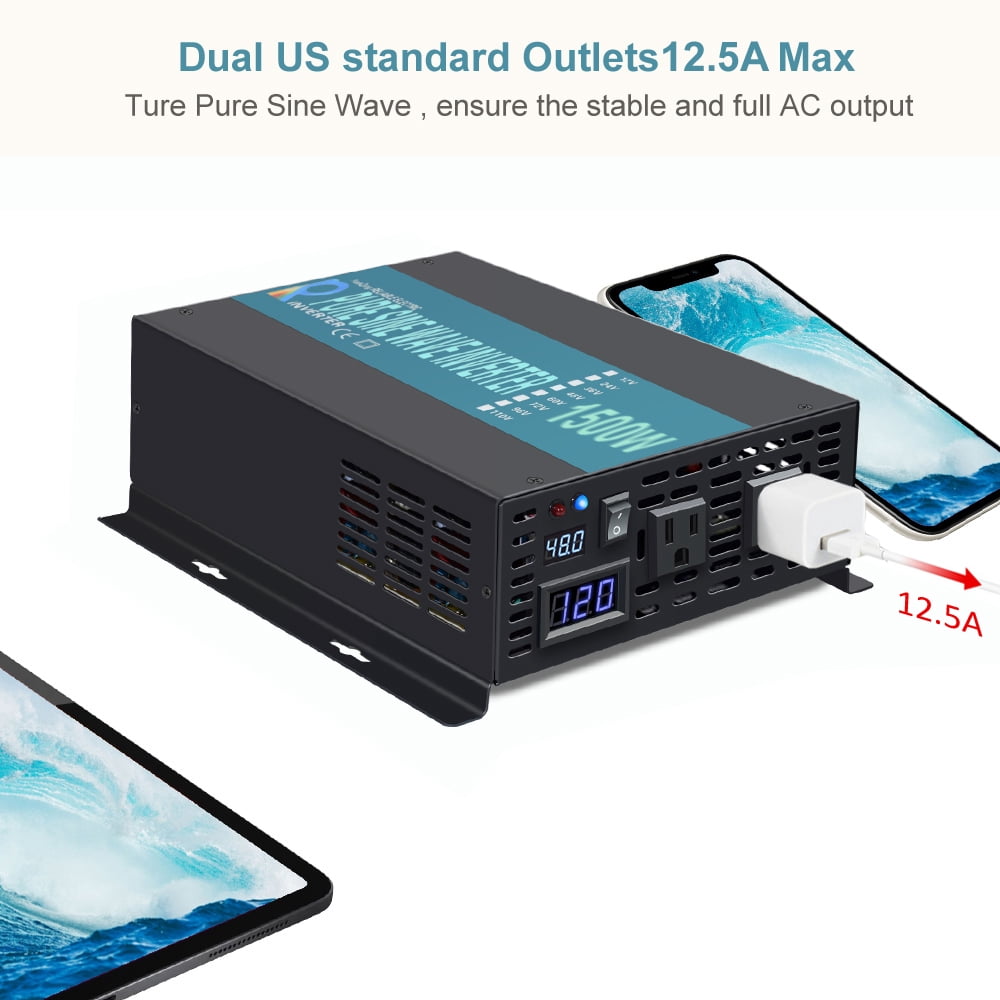

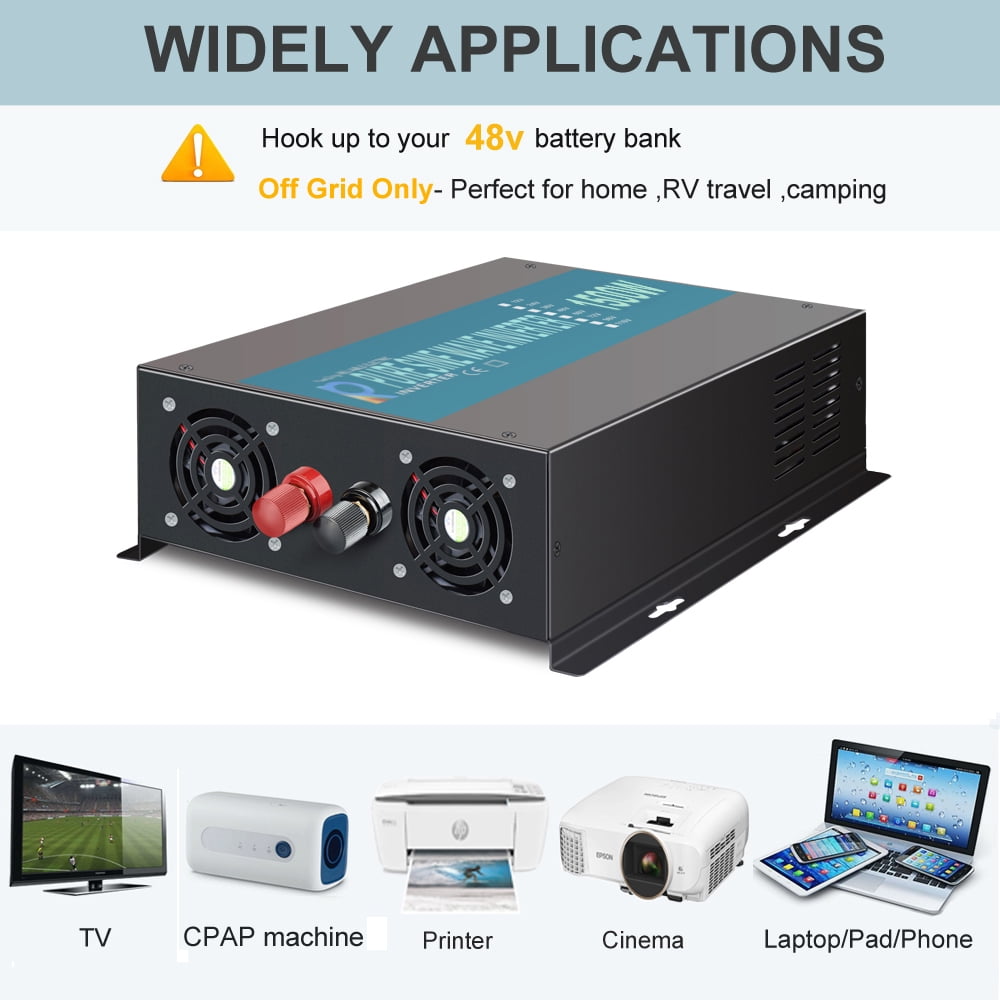

This pure sine wave power inverter is the 1500w continuous with the 3000w surge power. It converts the 48V DC power from the battery to the 120v AC power for the home appliance. It is the stable AC output similar to the grid power. It is suitable for the car, truck, RV, motorhome, home solar and wind system.
Product details:
DC input: 48V
DC input range: 40V-60V
No Load Current Draw: 1A
Efficiency:85%-90%
AC output: 120V
AC Regulation:3%
Frequency: 60Hz
Socket:15a USA type Low Voltage Alarm:40.5V-41V
Low Voltage Shut Down: 40V-40.5V
Over Load: shut off, recover manually
Over Voltage Shut Down:60V
Over Thermal: Shut Off Output Automatically, Over voltage protection
Cooling Ways: Cooling Fan will run when the temperature is over 50 degree
Precautions:
1. Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the fuse are just spare parts.
2. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
3. Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. If you want to power up a refrigerator, we suggest you use 10 times higher power inverter.
4. Please turn off the load first then turn off the inverter. And as there is a soft start function, please turn on the inverter first then turn on your loads, or the output may not stable at the first seconds.
5. For a red light flashing, it is a kind reminder to note you the input voltage is a bit high, you can regardless of it.
6. The output voltage can be adjusted in a little range.
| Surge wattage |
3000 W |
| Volts |
120 VAC, 48 VDC |
| Brand |
WZRELB |
| Features |
Auto Shut-Off |
| Has written warranty |
No |

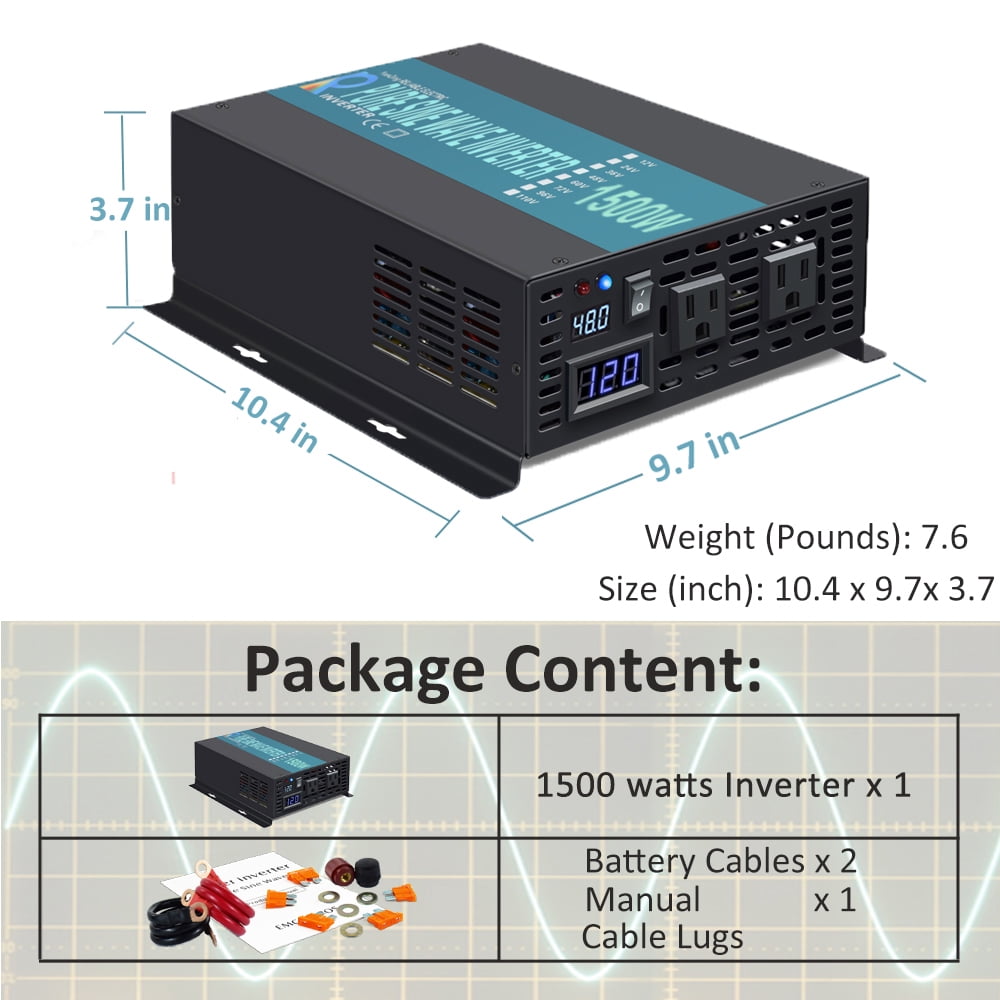

| Assembled product height |
3.7 in |
| Weight |
7.2 lb |
| Vehicle fitment type |
Universal |
| Vehicle type |
Car |
| Color |
black |
| Count |
1 |
| Model |
RBP150024V |
