Banda ICEX802 1100 watts 1 Channel Max at 2 Ohm Car Audio Amplifier with Bass Boost Highpass Filter & Low Pass Filter
4.4 (94 items)
Limited Time Sale$101.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 238370150 | Release Date | 2026/07/11 | List Price | $67.60 | Model Number | 238370150 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
* Total Power 14.4 @ 2 Ohms 1100 WRMS<br>* Total Power 14.4 @ 4 Ohms: 800 WRMS<br>* Total Power 12.6 @ 2 Ohms: 800 WRMS<br>* Total Power 12.6 @ 4 Ohms: 500 WRMS<br>* Efficiency @ 4 Ohms: 87%<br>* Efficiency @ 2 Ohms: 77%<br>* Input Voltage: 9 to 15V<br>* Input Impedance: 100K Ohms<br>* THD+Noise: 0.1%<br>* Input Sensitivity: 155mV to 8V<br>* SNR: 84dB<br>* Frequency Response (Key OFF): 5 to 22kHz (-3dBs)<br>* Frequency Response: 20 to 20kHz (-3dBs)<br>* Bass Boost @ 45Hz: Variable 0 to +18dBs<br>* HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley<br>* LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley<br>* Recommended Fuse: 50 A<br>* Current at Rest: 1.2 A<br>* Average Current Draw (Sinusoidal): 80 A<br>* Average Current Draw (Music): 40 A<br>* Power Wire Gauge (min. Recommended): 10mm / 7 AWG<br>* Speaker Wire Gauge (min. Recommended): 2 x 2.5mm / 2 x 13 AWG<br>* Weight (Lb): 6.8<br>* Height (in): 2.2<br>* Width (in): 8.4<br>* Depth (in): 9.7
- POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14.4 2 Ohm: 1100 WRMS, Total Power 14.4 4 Ohms: 800 WRMS, Total Power 12.6 2 Ohm: 800 WRMS, Total Power 12.6 4 Ohms: 500 WRMS, Efficiency 4 Ohms: 87%, Efficiency 2 Ohm: 77%

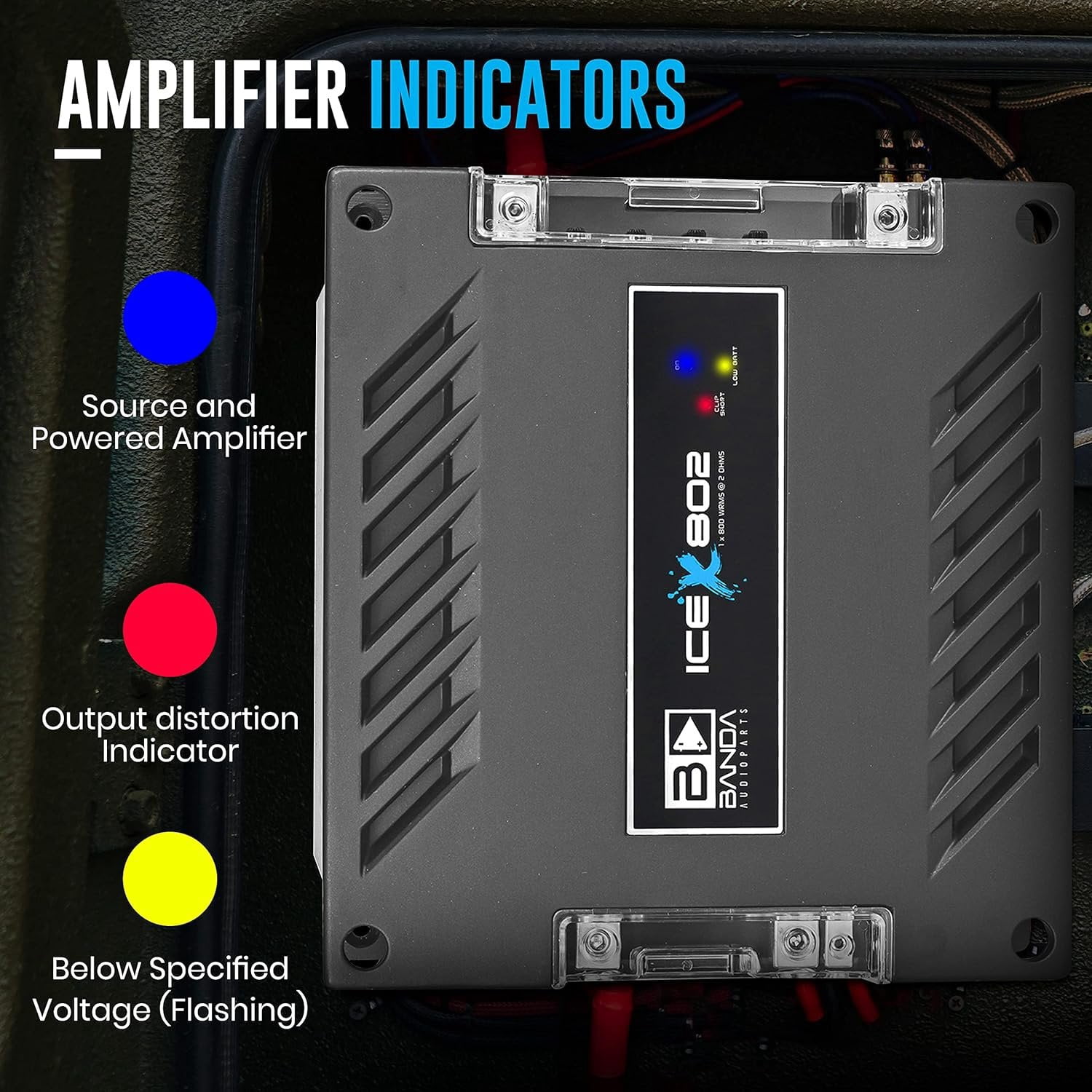

- MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion clipping, Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
- POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 1%, Input Sensitivity: 155mV to 8V, Signal to Noise Ratio: 84dB
- SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound

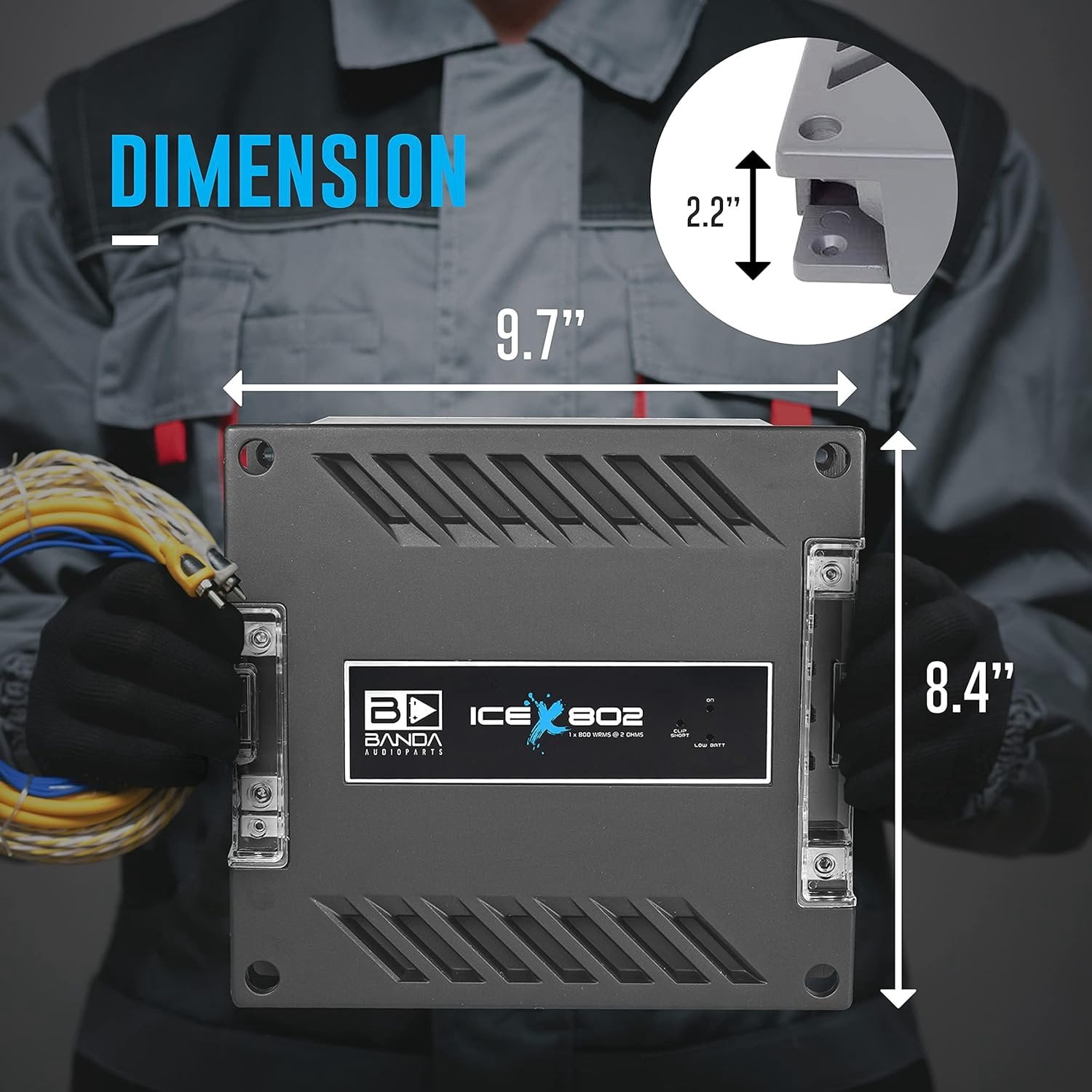

- OTHER TECHNICAL SPECS: Recommended Fuse: 50A, Current at Rest: 1.2A, Ave. Current Draw Sinusoidal: 80 A, Ave. Current Draw Music: 40 A, Power Wire Gauge: 10mm/7 AWG, Speaker Wire Gauge: 2 x 2.5mm/2 x 13 AWG, Size: 9.7'' x 8.4'' x 2.2'' -inches
| Brand | Banda Audioparts |
|---|---|
| Rms power rating | 1100 W |
| Channels | 1 |
| Impedance | 2 ohm |
| Peak audio power handling | 1100 W |
| Input/output type | RCA |
| Rec. use | Car Audio |
| Size | 9.84" x 9.84" x 2.36" |
| Color | MultiColor |
| Rec location | Vehicle |
| Audio output | 1100 W |
| Total harmonic distortion | 0.10 % |
| Signal-to-noise ratio | 84dB |
| Inputs/Outputs | RCA connectors |
| Input/output direction | Input |
| Model | ICEX800.2 |
| Compatibility | 9 to 15V |
| Vehicle type | Car |
| Has written warranty | No |
| Assembled product weight | 7 lbs |
| Volts | 9 to 15V |
| Amps | 1.2 Amps |
